Sinus Lift Surgery in Spain, Lateral Window, Crestal Summers, and When Zygomatic Beats Both

Why the Posterior Maxilla Needs Lifting So Often <a id="why-posterior"></a>

The maxillary sinus sits directly above the upper molar and premolar roots. When those teeth are lost, the sinus floor pneumatises downward into the space the roots used to occupy. Over years this can reduce the residual bone between the crest of the alveolar ridge and the sinus floor to 2-5 mm, far below what a standard implant needs. In the anterior maxilla the equivalent problem exists below the nasal floor but is less common because anterior teeth are lost later in most patients.

For Spanish patients with long-standing posterior maxillary tooth loss, sometimes 10, 20, or 30 years before they consider implants, the residual posterior maxillary bone is the commonest anatomical constraint we see. A sinus lift raises the Schneiderian membrane (the sinus lining), places bone graft material in the space that creates, and allows implant placement either simultaneously or after 6-9 months of healing.

It is a well-established procedure with 40 years of published evidence. Done correctly, it extends implant dentistry into patients who would otherwise be candidates for removable prostheses only, or for zygomatic implants as the next-tier option. The honest clinical question is not "does this patient need a sinus lift?", the CBCT answers that, but "lateral window or crestal, simultaneous implant or staged, and is there a reason zygomatic would serve this patient better?"

Lateral Window vs Crestal Summers, The Decision <a id="lateral-vs-crestal"></a>

Two techniques dominate sinus augmentation. The choice is driven by the residual crestal bone height measured on CBCT.

Lateral Window (Caldwell-Luc-derived, Tatum 1986). A bony window is created in the lateral wall of the sinus. The Schneiderian membrane is elevated from the sinus floor through this window. Graft material is placed beneath the elevated membrane, filling the space up to the planned implant apex position. The window is covered with a resorbable membrane and the flap closed. Access is direct, volume of graft placed is large (typically 2-4 cc), and implant positions are determined by the regenerated bone rather than the original crestal height.

Indicated when: residual crestal bone < 5 mm, large volume of augmentation needed, multiple implants planned across the site, or when membrane elevation needs direct visualisation.

Crestal (Summers Osteotome, 1994; modern hydraulic and piezoelectric variants). An osteotomy is prepared from the crest up to the sinus floor. The last 1-2 mm of bone is gently fractured upward, elevating the membrane a few millimetres. Graft material is introduced through the osteotomy and packed against the elevated membrane. The implant is placed through the same osteotomy in the same visit.

Indicated when: residual crestal bone 5-8 mm, single or small number of implants, modest augmentation needed (1-3 mm of membrane elevation).

The decision is not binary in borderline cases. A patient with 5 mm of residual crestal bone under a single molar site is a candidate for either. We default to the less invasive option where both are viable. For patients with 7-8 mm we almost always use crestal; for patients with 3 mm or less we almost always use lateral window. Between 4 and 6 mm we decide on anatomical specifics (membrane thickness, sinus septa, adjacent tooth status).

Piezoelectric Osteotomy and Why We Use It <a id="piezo"></a>

Conventional rotary instruments (burs) cut both bone and soft tissue. The Schneiderian membrane is soft tissue. A bur that touches the membrane perforates it, complicating the procedure and in some cases forcing abandonment of the lift.

Piezoelectric surgery (piezosurgery) uses ultrasonic vibration at frequencies that cut mineralised tissue (bone) but do not cut non-mineralised tissue (membrane, nerves, blood vessels). The bony window in a lateral approach can be cut with a piezoelectric insert that stops cleanly at the membrane, reducing perforation risk by approximately 50% in published meta-analyses (Wallace 2010, Toscano 2010, Stacchi 2018).

We use piezoelectric cutting for every lateral window sinus lift. The cost of the piezo equipment is bundled into our sinus lift fee rather than billed separately. Spanish patients have sometimes been quoted piezo cases at EUR 400-800 surcharge at home, this is included with us.

Schneiderian Membrane Perforation, Our 9.2% Reality <a id="perforation"></a>

Across 924 cases our lateral window perforation rate is 9.2% (published literature averages 10-25%, with more experienced operators at the lower end of that range). Crestal Summers perforation rate 4.1%. These are small perforations managed intraoperatively in most cases without compromising the procedure.

Management of perforation depends on size:

• < 5 mm: Collagen membrane placed over the perforation before grafting. Graft contained. Procedure continues. Post-operative outcomes equivalent to non-perforated cases in our data.
• 5-10 mm: Multiple membrane layers, sometimes with additional suturing. Procedure continues but with additional caution and extended antibiotic cover.
• > 10 mm: Procedure aborted, site allowed to heal for 6-9 months, re-attempted at a later visit. About 1 in 40 of our lateral window cases ends this way.

Patients are informed pre-operatively that this is a known complication with a published incidence range. We document perforation occurrence and management in the operative record. If re-attempt is required, it is covered under warranty Category A.

When Zygomatic Beats Sinus Lift <a id="zygomatic-alternative"></a>

For patients with severe posterior maxillary atrophy, ZAGA Type III or IV, bilateral sinus lifts are not the best-outcome pathway even when they are technically feasible. They require:

• Two major surgical sites.
• 6-9 months of healing before implant placement.
• Multiple return visits to India.
• Real risk of graft failure in poorly-vascularised atrophic maxillae.
• Total treatment span of 12-18 months.

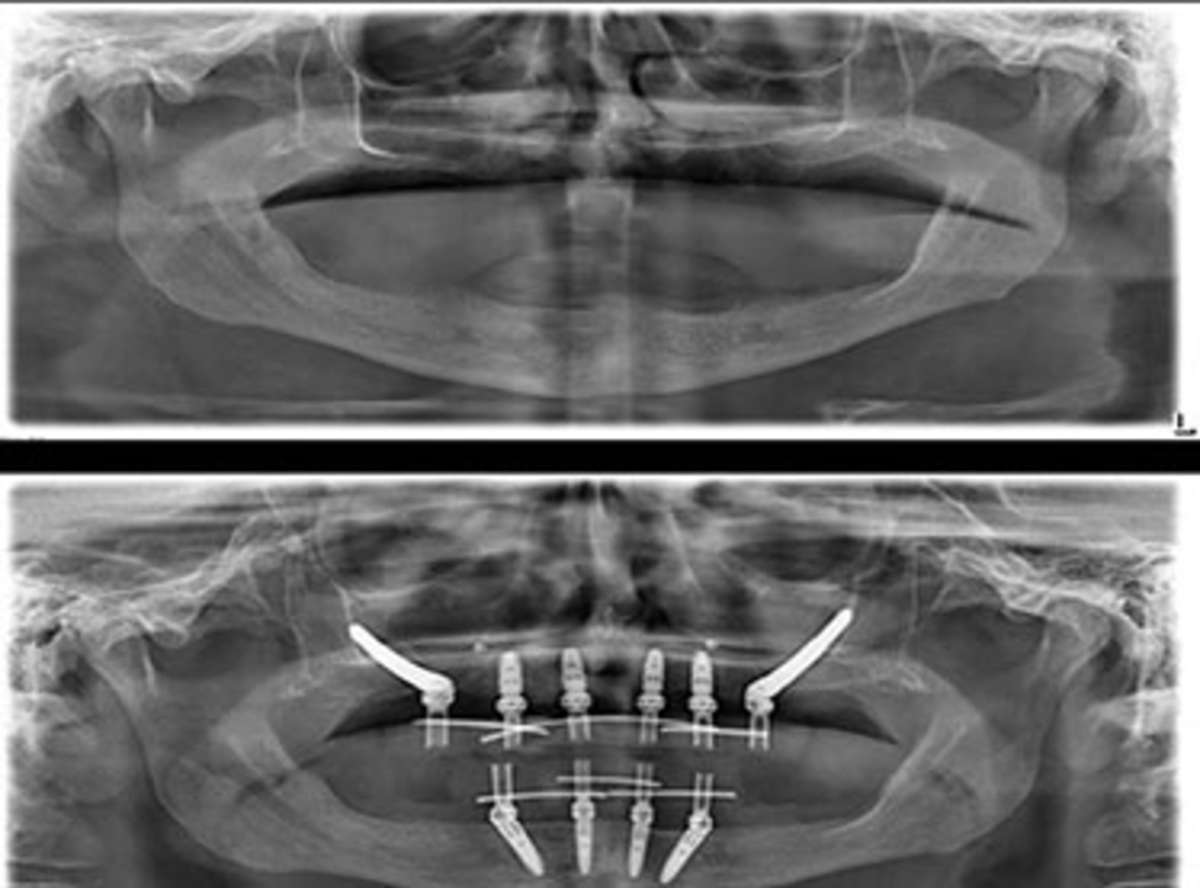

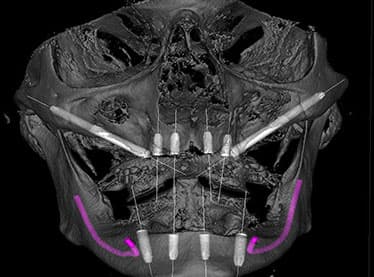

A zygomatic implant protocol, by contrast, engages the dense zygomatic bone directly. Two to four zygomatic fixtures plus two anterior conventional implants can carry a full-arch prosthesis. Surgery is a single visit. Immediate loading with a provisional is often possible. Total treatment span 4-6 months.

For ZAGA Type III and IV cases, we recommend zygomatic over bilateral sinus lift. For ZAGA Type I and II cases, sinus lift remains the first-line approach. The ZAGA classification is determined by CBCT and reviewed in the planning conference; the patient sees their own anatomical image and the choice is explained before the plan is finalised.

Approximately 11% of Spanish patients referred to us for "sinus lift + implants" end up on a zygomatic pathway after our planning review. The reverse also happens: some patients referred for zygomatic are successfully treated with conventional implants after sinus augmentation, because the atrophy was less severe than initially assessed.

Simultaneous vs Staged Implant Placement <a id="simultaneous-staged"></a>

Following a lateral window sinus lift, the implant can be placed either in the same surgery (simultaneous) or after 6-9 months of graft maturation (staged).

Simultaneous placement is feasible when residual crestal bone is ≥ 4 mm, enough to achieve primary implant stability at placement. The fixture is seated through the newly augmented bone with its apex in the graft material. Immediate provisionalisation is not typical in simultaneous sinus-lift cases because the early insertion torque is usually below the 35 Ncm threshold. Delayed loading at 6-9 months is standard.

Staged placement is used when residual crestal bone is < 4 mm, when large perforation required procedure modification, or when patient factors (smoking, poorly controlled diabetes) warrant additional healing before introducing a fixture.

The decision is made on the CBCT at planning. For Spanish patients traveling from Madrid or Barcelona, a simultaneous approach saves a trip. A staged approach protects against compromised graft healing. We do not choose simultaneous to save a trip if the anatomy does not support it.

Crestal Summers lifts are almost always simultaneous, implant placed through the same osteotomy that created the elevation.

The 72-Hour No-Fly Post-Op Window <a id="no-fly"></a>

Sinus lift patients are specifically advised not to fly for 72 hours post-operatively. The reasons:

• Pressure changes at altitude can disrupt the Schneiderian membrane elevation.
• Cabin humidity is very low; sinus mucosa dries and healing is impaired.
• Sneezing pressure can displace graft material through a compromised membrane.
• Clot disruption from pressure differentials increases bleeding risk.

Our trip plan builds this window in: surgery typically Day 4, fly home Day 10-14. We also advise:

• No blowing the nose for 2 weeks post-op. Sneeze with mouth open.
• No swimming, diving, or high-altitude activity for 4 weeks.
• No heavy lifting or straining (Valsalva manoeuvres) for 2 weeks.
• Prescribed saline nasal spray and, in some cases, oxymetazoline decongestant short-course.

Spanish patients with strong reasons to travel earlier (family emergency, work critical events) are considered case-by-case; in general we do not compromise the 72-hour window.

What This Costs in EUR <a id="cost-in-eur"></a>

Inclusive of: surgical fee, piezoelectric cutting, graft materials, membranes, IV sedation, pre- and post-op CBCT, medications, post-op reviews, 12-month graft maturation review.

Not included: the implant surgery itself (separate quote), the definitive prosthesis, flights, visa, personal insurance.

Insurance for Spanish patients: Sanitas, Adeslas, DKV, Mapfre Salud, and Asisa typically cover sinus lift as part of implant-related surgical reimbursement at specific procedure codes. We supply EUR itemised invoices with CIE-10 codes, Spanish-language clinical summaries, and letters of medical necessity. IRPF deduction documentation provided.

For Spanish Patients: Trip Plan <a id="spanish-logistics"></a>

Trip 1 (Sinus Lift Surgery, 10-14 days in Hyderabad):

• Day 1: Arrival HYD.
• Day 2: Consultation, CBCT, bloods.
• Day 3: Planning conference.
• Day 4: Surgery (sinus lift ± simultaneous implants).
• Day 5-7: Recovery, post-op reviews, bite adjustment if implants placed simultaneously.
• Day 8-10: Final clinical review. Confirm no-fly window cleared.
• Day 10-14: Fly home.

Healing phase in Spain (6-9 months):

• Soft diet 6 weeks.
• No nose blowing 2 weeks.
• Spanish dentist handles suture removal and routine post-op checks.
• Monthly video review with our team for the first 3 months.

Trip 2 (Implant placement, if staged, not simultaneous):

• 10-14 days, same logistics pattern as Trip 1.

Trip 3 (Definitive prosthesis):

• 7-10 days at month 4-6 post-implant.

Flights: Iberia, Lufthansa, Turkish, Qatar, Etihad via one connection from MAD, BCN, VLC, SVQ, BIO, AGP, ZAZ, PMI.

Hotels: Taj Krishna, Park Hyatt, ITC Kohenur, Novotel HITEC City, Radisson Blu, Marriott Executive Apartments, Hyatt Place, or Courtyard Marriott.

Anjali Reddy coordinates the full sequence in Spanish. Home dentist handover includes full operative record, graft batch numbers, CBCT pre- and post-op, and ENT clearance letter if applicable.

Complications, Warranty, ENT Escalation <a id="complications"></a>

Membrane perforation. 9.2% (lateral), 4.1% (crestal). Managed intraoperatively. No additional cost to the patient.

Graft failure. 4-6% of sinus lift grafts fail to mature adequately. Re-graft covered under Category A warranty if within 24 months.

Post-op sinusitis. 3-5% of patients develop clinical sinusitis in the weeks following surgery. Most respond to antibiotics (amoxicillin-clavulanate 875/125 mg BD × 7-10 days is our typical regimen). Refractory cases referred to ENT at partner hospital (Apollo Jubilee Hills or AIG Gachibowli) for nasal endoscopy and further management.

Oroantral communication. Rare (< 1%). Requires staged surgical closure.

Graft displacement into sinus. Rare. Usually requires endoscopic retrieval by ENT.

Warranty. Category A covers surgical complications within 24 months. Category B covers patient-factor complications. Escalation chain: non-clinical via Anjali Reddy → Dr. Kiran Madhav → Dr. Sai Krishna; clinical via Dr. Ravi Sharma → Clinical Warranty Committee → independent European prosthodontist consultant (Barcelona / Milan / Zurich rotation) → Camera Arbitrale di Milano arbitration.

For patients with established chronic sinusitis or a history of sinus surgery, we require ENT clearance before proceeding. An ENT consultation is arranged at our partner hospital and included in the treatment fee.
